Rapid Mixer & Wet Granulator R&D MODEL (3,5 & 10 Lits)

SARAL Lab Rapid Mixer Granulator is a very precision machine, performing dry mixing and wet granulation in the same bowl in only 6 to 20 minutes. The entire operation is fully dust-free and automatic including discharge. All parts coming in contact with mix are of stainless steel 316 L quality and are highly polished. Drive motors, electrical control panel and control station are supplied in non-flameproof as well as flameproof construction, as per client’s requirement. In case of flameproof construction, the control panel should be located in low-risk area.



• All components coming in contact with product mix are made from SS 316 L quality are highly polished.
• Chopper housing is entirely made of S.S. having special seals. Three separate chopper housing for each bowl are provided with common motor and drive.
• Separate bowls of 3,5 and 10 lits. capacity having common base or pedestal. All bowls can be locked with wing nut from the bottom.

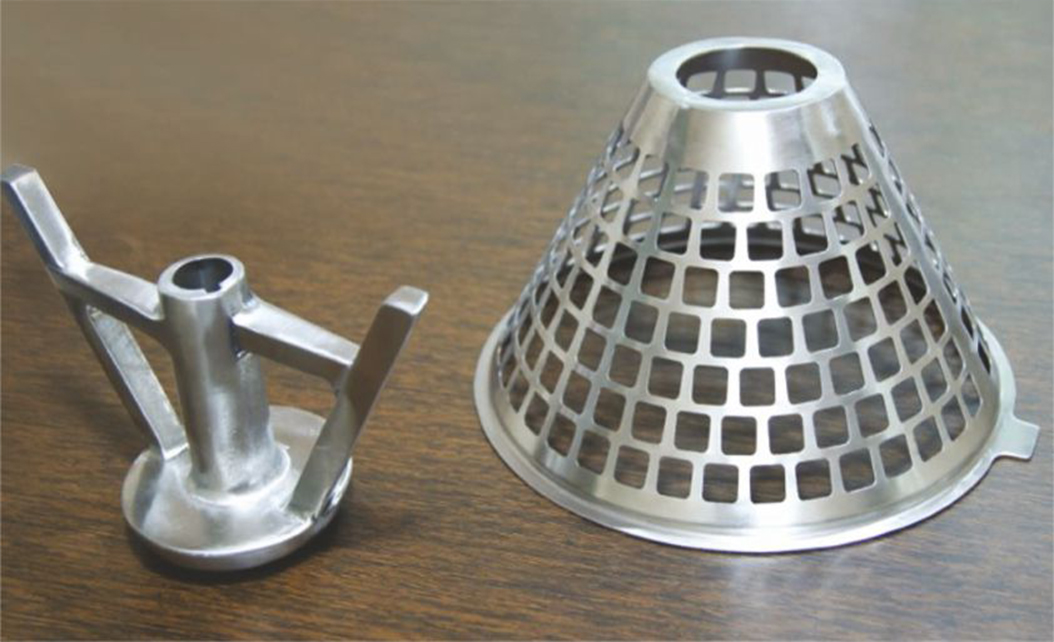

• Main impeller is having unique design and blade angle, thus pushing the material radially outward. Entire impeller is thoroughly machined.
• Bowls are with separate discharge assembly with independent discharge facility for all three bowls.
• Machine with cabinet for storing remaining two bowls.
• Discharge piston is made of P.T.F.E.
• PLC arrangement with variable drive to have same tip speed for all three capacities to arrive at uniform results of granulation.

• All components coming in contact with product mix are made from SS 316 L quality are highly polished.
• Chopper housing is entirely made of S.S. having special seals. Three separate chopper housing for each bowl are provided with common motor and drive.
• Separate bowls of 3,5 and 10 lits. capacity having common base or pedestal. All bowls can be locked with wing nut from the bottom.
• Main impeller is having unique design and blade angle, thus pushing the material radially outward. Entire impeller is thoroughly machined.
• Bowls are with separate discharge assembly with independent discharge facility for all three bowls.
• Machine with cabinet for storing remaining two bowls.
• Discharge piston is made of P.T.F.E.
• PLC arrangement with variable drive to have same tip speed for all three capacities to arrive at uniform results of granulation.





Salient Features
  • All components coming in contact with product mix are made from SS 316 L quality are highly polished.
  • Top lid is made from Toughened glass.
  • Copper housing is entirely made of S.S. having special seals. Three separate chopper housing for each bowl are provided with common motor and drive.
  • Separate bowls of 3,5 and 10 lits capacity having common base or pedestal. All bowls can be locked with wing nut from the bottom.
  • Main impeller is having unique design and blade angle, thus pushing the material radially outward. Entire impeller is thoroughly machined.
  • Bowls are with separate discharge assembly with independent discharge facility for all three bowls.
  • Machine with cabinet for storing remaining two bowls.
  • Discharge piston is made of P.T.F.E.
  • PLC arrangement with variable drive to have same tip speed for all three capacities to arrive at uniform results of granulation.
  • Arrangements is provided to ensure that the discharge won’t take place unless there is container placed underneath the discharge.
  • Single piece construction in S.S. 316L for product contact parts.
  • Rest entire structure in S.S. 304
  • Self contained with all air handing unit inside the main frame
  • 1 Kg or 500 gm model are table top models having size 900x900x750 H
  • Top spray arrangement with a peristaltic pump can be supplied if opted for
  • On board controls with advance PLC of Allen Bradley make
  • Differential pressure gauging manometers fitted for indicating pressure differential across 5 micron filter inlet, across product bed and across exhaust filter.
  • For sizes of 2 kg, 5 kg and 10 kg the model has trolley with castor wheels.
  • Peristaltic solution spraying pump can be provided for top spray.
  • Can be converted to Wurster (bottom spray) coater with attachment.
