Oscillating Granulator

Field of Application

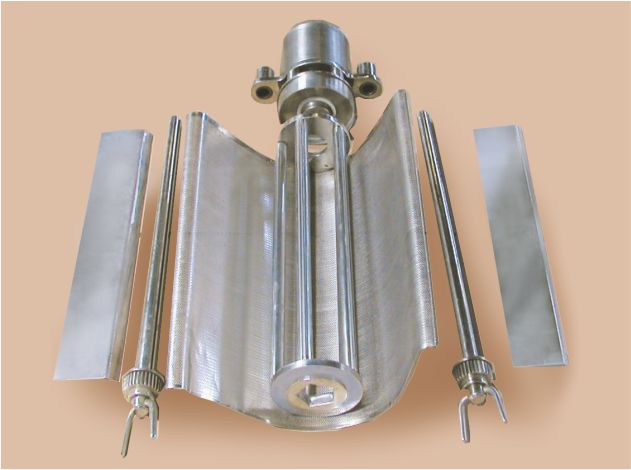

Oscillating Granulator.Oscillating granulator is used for downsizing of granules or for size reduction. It has large application in pharmaceutical, chemical and food industry. Machine has one rotor with five edge rollers, which oscillate on horizontal axis at about 150 to 180 per minutes. There is one half round sieve mounted at the bottom of the rotor / blade. Material is charged from the top through in feed hopper and material falls on the rotor lades. Due to the knife edges mounted on rotor, the downsizing of particle takes place and through sieve material gets pushed outward from the bottom opening. Central rotor can be removed for cleaning very easily.

Oscillating Granulator.


Salient Features
Simple, rigid and compact design.
Entire construction from stainless steel.
Maintenance free with easy accessibility to rotor and sieves.
Ease of cleaning.
Gap between rotor and sieve can be adjusted very easily.
Oscillating movement of rotor with very low energy results in very low noise and dusting in the room.
Uniform granules with least fines.

TECHNICAL SPECIFICATIONS
 Model
OG 200
OG 400
 Motor

2 HP, 1,440 RPM, 3 Phase with
Bonfiglioli helical gear Box.
3 HP, 1,440 RPM, 3 Phase with
Bonfiglioli helical gear Box.
 Oscillating Speed

180 Oscillations per minute / variable drive on request.
180 Oscillations per minute / variable drive on request.
 Chamber
Single
Double
 Sieve Area
Single sieve of Size
 Weight
250 Kg
400 Kg
 Capacity

150 - 250 Kg / hr depending upon the sieve size and product characteristic.
300 - 500 Kg / hr depending upon the sieve size and product characteristic.
 Screen Size
Single sieve of 490 mm x 450 mm
Single sieve of 490 mm x 450 mm
 Rotor
Single rotor with five cutting arm
Double rotor with five cutting arm
 Overall Size (W x L x H)
900 mm x 1,200 mm x 1,400 mm
1,200 mm x 1,200 mm x 1,400 mm
 Weight
300 Kg net weight
500 Kg net weight
